- Size: -
- Place of Origin: China
- Brand Name: Zhuhai Guanhao Machinery &Eequipment Co.,Lltd.
- Model Number: GH
- Weight: 200.000 kg

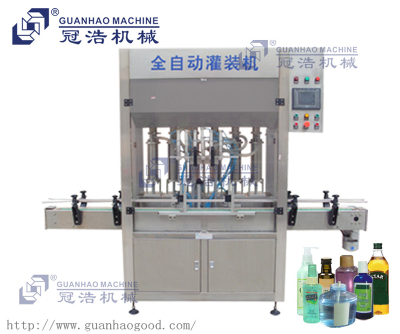

Product Name: full automatic piston type liquid filling machine
Product introduction:
Full automatic piston liquid filling machine, the piston type filling form, imported PLC and touch screen man-machine interface, suitable for a variety of products from the agent to make the viscosity of cream, suitable for cosmetic, medicine, food, pesticide and other industries.
Technical parameter:
Filling head number: 6
Filling capacity: 100 ~ 1000 (ML) can be adjusted (according to customer requirements)
Filling form: Piston Filling
Theoretical filling speed: 10-50 bottles / min
Filling accuracy: 1%
Conveying speed: 5-15 M / min
Conveyor belt width: 82 (mm)
Conveyor belt: 3 meters of steel chain type
Conveyor belt height: 750 20 (mm)
Whole power: 500W/220V AC single phase
Process control: imported PLC with touch screen man-machine interface
Gas source: 0.5-0.8MPa
