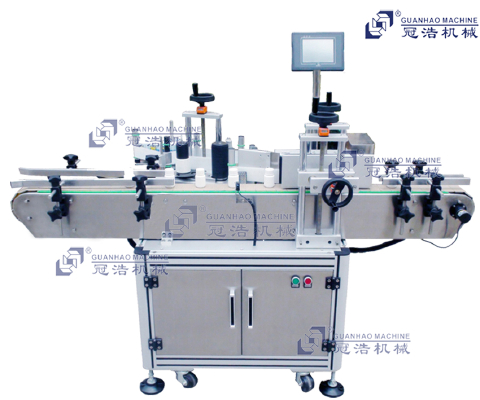

Product Name: vertical round bottle labeling machine

Product model: GH-TB-90LR2

Functional characteristics:

Zhuhai Guanhao machinery GH-TB-90LR2 type vertical round bottle labeling machine, this equipment adopts PLC microcomputer control software system, powerful memory function, can preset 50 groups of labeling parameters, convenient operation; the mark by mutual inductance stepper motor control, to ensure that a standard speed and roll bottle synchronous speed; imported inverter control, ensure the stable and reliability.

Basic use:

Vertical round bottle labeling machine can be used for a variety of cylindrical objects, small taper round bottle full week / half weeks, positive double labeling, such as canned food, cosmetics bottle, medicine bottles; the other with ribbon coding machine, can also print production batch information labeling.

Technical parameter:

Labeling accuracy: 1 mm

Applicable label range: square label: 10 ~ 300 (mm) high 10 ~ 100 (mm)

Round tab: diameter: 10-100 (mm)

Scope of application: circular products: diameter: 20-90 (mm) height: 15-300 (mm)

Production capacity: 100 ~ 150 bottles / min

Rated voltage: 220V/50Hz

Power of the whole machine: 300W

Dimensions: 1710 x 950 x 300 (mm) (long x w * h)

Weight of the whole machine: 146Kg
